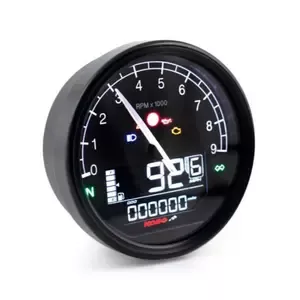

- The speedometer/tachometer Koso D80 TNT-05 combines modern technology with a wide range of features for precise vehicle performance monitoring. With approval (ABE), this instrument is versatile and offers clear displays for speed, engine RPM, temperature, voltage, and other important parameters.
- Speedometer : 0 ~ 360 km/h (0 ~ 225 MPH), switchable, unit 1 km/h (MPH)
- Speed warning : Adjustable 30 ~ 360 km/h (19 ~ 225 MPH), a warning light turns on when the speed is exceeded.
- Maximum speed : 0 ~ 360 km/h (MPH)
- Odometer : 0 ~ 999,999 km (miles), unit 1 km (mile)
- Partial odometer A/B : 0 ~ 9,999.9 km (miles), unit 0.1 km (miles)
- Oil change interval : Off / 500 ~ 16,000 km (300 ~ 10,000 miles), unit 100 km (miles)
- Fuel gauge : Resistances 100, 250, 270, 510, 1200, SW, User; display 6 bars
- Engaged speed indicator : -, N, 1-6
- Gear change recommendation : Display N, 1-6, when exceeding the speed range
- Gear change warning light : Adjustable 1,000 ~ 10,000 RPM
- Tachometer : 0 ~ 8,000 RPM, unit 100 RPM
- Thermometer : °C or °F (switchable)
- Water thermometer : -30 ~ 225 °C (-22 ~ 437 °F), unit 1 °C (°F)
- Voltmeter : 8.0 ~ 18.0 V
- Clock : 12/24 hour format
- Warnings : Adjustable for light (L), slow blinking (S), fast blinking (F)
- Low voltage indicator : Adjustable range 8.0 ~ 18.0 V, unit 0.1 V
- Background brightness : 1/5 (dark) ~ 5/5 (bright), in 20% increments
- Background colours : Purple, Red, Yellow, Green, Blue, Light Blue, White
- Warning lights : Engine RPM indicator, warning light 1, warning light 2, neutral, turn signals, high beams, engine control warning
- Operating voltage : DC 12V
- Standard : JIS D 0203
- Dimensions : 94.7 × 94.7 × 69.2 mm
- Weight : ± 165 g
- Back case diameter : about 80 mm
- Ring diameter : about 90 mm
- ABE/KBA : 91397
- LCD instrumentation – 1×
- Main wiring harness – 1×
- Active speed sensor – 1×
- Type A speed cable – 1×
- Type B speed cable – 1×
- Sensor cable set – 1×
- Temperature sensor – 1×
- Mounting bracket for M8 speed sensor / type S – 1×
- Mounting bracket for M10 speed sensor / type S – 1×
- Hex bolt M5 × 5 P0.8 – 2×
- 2.5 mm hex key – 1×
- Measuring instrument bracket – 1×
- Washer M5 – 2×
- Hex socket screw M5 × 16L – 1×
- Rubber band – 1×
- Handlebar clamp – 1×
- Hex socket screw M8 × 20L – 1×
- Washer M8 – 1×
- Nut M8 × P1.25 – 1×
- Rubber cap – 2×
- Speedometer : 0 ~ 360 km/h (0 ~ 225 MPH), switchable, unit 1 km/h (MPH)
- Speed warning : Adjustable 30 ~ 360 km/h (19 ~ 225 MPH), a warning light turns on when the speed is exceeded.
- Maximum speed : 0 ~ 360 km/h (MPH)
- Odometer : 0 ~ 999,999 km (miles), unit 1 km (mile)
- Partial odometer A/B : 0 ~ 9,999.9 km (miles), unit 0.1 km (miles)
- Oil change interval : Off / 500 ~ 16,000 km (300 ~ 10,000 miles), unit 100 km (miles)
- Fuel gauge : Resistances 100, 250, 270, 510, 1200, SW, User; display 6 bars
- Engaged speed indicator : -, N, 1-6
- Gear change recommendation : Display N, 1-6, when exceeding the speed range
- Gear change warning light : Adjustable 1,000 ~ 10,000 RPM
- Tachometer : 0 ~ 8,000 RPM, unit 100 RPM
- Thermometer : °C or °F (switchable)
- Water thermometer : -30 ~ 225 °C (-22 ~ 437 °F), unit 1 °C (°F)
- Voltmeter : 8.0 ~ 18.0 V
- Clock : 12/24 hour format
- Warnings : Adjustable for light (L), slow blinking (S), fast blinking (F)
- Low voltage indicator : Adjustable range 8.0 ~ 18.0 V, unit 0.1 V
- Background brightness : 1/5 (dark) ~ 5/5 (bright), in 20% increments
- Background colours : Purple, Red, Yellow, Green, Blue, Light Blue, White
- Warning lights : Engine RPM indicator, warning light 1, warning light 2, neutral, turn signals, high beams, engine control warning
- Operating voltage : DC 12V
- Standard : JIS D 0203
- Dimensions : 94.7 × 94.7 × 69.2 mm
- Weight : ± 165 g
- Back case diameter : about 80 mm
- Ring diameter : about 90 mm
- ABE/KBA : 91397
- LCD instrumentation – 1×
- Main wiring harness – 1×
- Active speed sensor – 1×
- Type A speed cable – 1×
- Type B speed cable – 1×
- Sensor cable set – 1×
- Temperature sensor – 1×
- Mounting bracket for M8 speed sensor / type S – 1×
- Mounting bracket for M10 speed sensor / type S – 1×
- Hex bolt M5 × 5 P0.8 – 2×
- 2.5 mm hex key – 1×
- Measuring instrument bracket – 1×
- Washer M5 – 2×
- Hex socket screw M5 × 16L – 1×
- Rubber band – 1×
- Handlebar clamp – 1×
- Hex socket screw M8 × 20L – 1×
- Washer M8 – 1×
- Nut M8 × P1.25 – 1×
- Rubber cap – 2×
Features:
- colour: Black
- voltage: 12V
- weight (g): 647
- width (mm): 134
- height (mm): 130
- length (mm): 173
- volume (cm³): 3014
